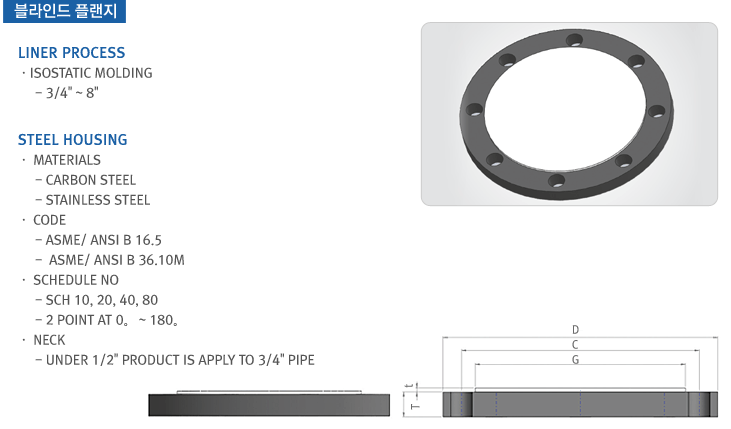

| SIZE(INCH) |
D |
C |
G |
B2(d) |
MATERIAL |
| PTFE |
| 1/2 |
88.9 |
60.4 |
35.1 |
22.4 |
● |
| 3/4 |
98.6 |
69.9 |
42.9 |
27.7 |
● |
| 1 |
108 |
79.2 |
50.8 |
34.5 |
● |
| 1
1/4 |
117.3 |
88.9 |
63.5 |
43.2 |
● |
| 1
1/2 |
127 |
98.5 |
73.2 |
49.5 |
● |
| 2 |
152.4 |
120.6 |
92 |
62 |
● |
| 2
1/2 |
177.8 |
139.7 |
104.6 |
74.7 |
● |
| 3 |
190.5 |
152.4 |
127 |
90.7 |
● |
| 3
1/2 |
215.9 |
177.8 |
139.7 |
103.4 |
● |
| 4 |
228.6 |
190.5 |
157.2 |
116.1 |
● |
| 5 |
254 |
215.9 |
185.7 |
143.8 |
● |
| 6 |
279.4 |
241.3 |
215.9 |
170.7 |
● |
| 8 |
342.9 |
298.4 |
269.7 |
221.5 |
● |
| 10 |
406.4 |
361.9 |
323.8 |
276.4 |
● |
| 12 |
482.6 |
431.8 |
381 |
327.2 |
● |
| 14 |
533.4 |
476.2 |
412.8 |
359.2 |
● |
| 16 |
596.9 |
539.7 |
469.9 |
410.5 |
● |
| 18 |
635 |
577.8 |
533.4 |
461.8 |
● |
| 20 |
698.5 |
635 |
584.2 |
513.1 |
● |
|
