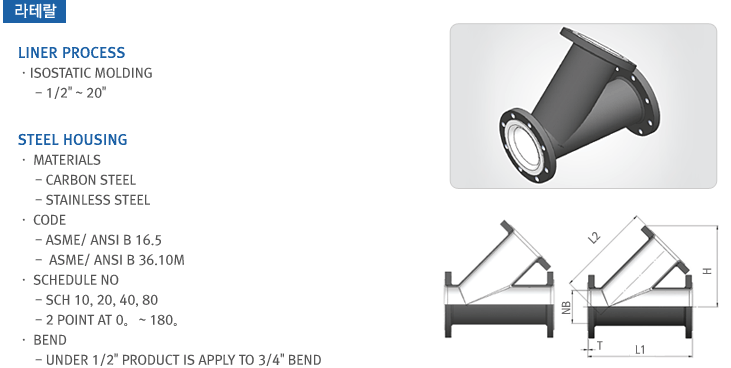

| SIZE |
NB(Φ) |
H |
L1 |
L2 |
MATERIAL |
| PTFE |
PFA |
ETFE |
PP/PE |
| 3/4" |
16.9 |
104 |
|
100.1 |
● |
● |
● |
● |
| 1" |
22.6 |
111.9 |
|
106.3 |
● |
● |
● |
● |
| 1-1/2" |
34.9 |
140 |
235 |
137.4 |
● |
● |
● |
● |
| 2" |
46.5 |
165.8 |
250 |
161.4 |
● |
● |
● |
● |
| 2-1/2" |
56.7 |
192.8 |
256 |
186.5 |
● |
● |
● |
● |
| 3" |
71.9 |
208.1 |
300 |
201.5 |
● |
● |
● |
● |
| 4" |
96.3 |
246.2 |
390 |
236.3 |
● |
● |
● |
● |
| 5" |
122.2 |
283.7 |
440 |
276.7 |
● |
● |
● |
● |
| 6" |
148.1 |
315.1 |
520 |
308.5 |
● |
● |
● |
|
| 8" |
196.7 |
388.3 |
600 |
373.1 |
● |
● |
● |
|
| 10" |
248.3 |
463.3 |
750 |
454.8 |
● |
● |
● |
|
| 12" |
297.2 |
549.3 |
892 |
537 |
● |
● |
● |
|
| 14" |
327.3 |
602 |
1052 |
586.3 |
● |
● |
● |
|
| 16" |
375 |
675.3 |
1044 |
658.2 |
● |
● |
● |
|
| 20" |
471.8 |
807.6 |
1252 |
794.3 |
● |
● |
● |
|
|
