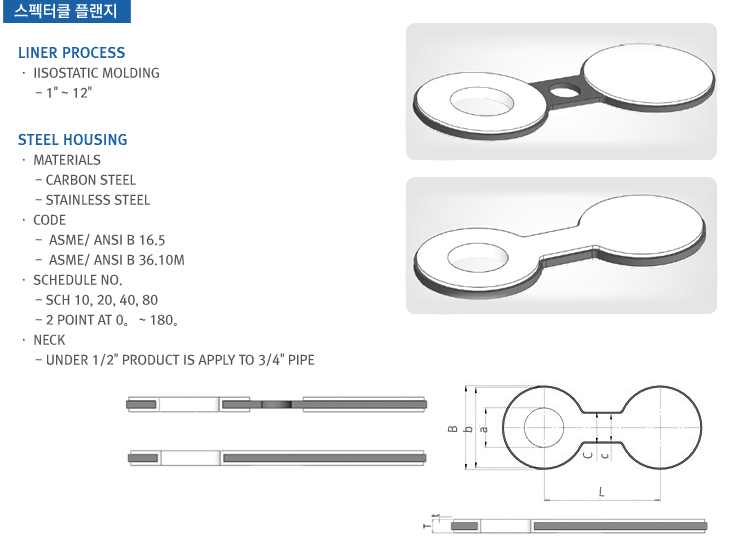

| PIPE
SIZE |
FLANGES
SIZE |
LINING
SIZE(mm) |
MATERIAL |
| B |
C |
A |
B |
L |
T |
T |
PTFE |
| 1" |
64 |
38 |
21 |
60 |
80 |
3.0 |
3 |
● |
| 1-1/4" |
73 |
38 |
36 |
69 |
90 |
6.4 |
3 |
● |
| 1-1/2" |
83 |
38 |
42 |
83 |
100 |
6.4 |
3 |
● |
| 2" |
102 |
51 |
55 |
98 |
120 |
6.4 |
3 |
● |
| 2-1/2" |
107 |
51 |
67 |
117 |
140 |
6.4 |
3 |
● |
| 3" |
133 |
64 |
83 |
129 |
150 |
6.4 |
3 |
● |
| 3-1/2" |
159 |
64 |
96 |
155 |
175 |
9.7 |
3 |
● |
| 4" |
172 |
64 |
108 |
177 |
190 |
9.7 |
3 |
● |
| 5" |
194 |
76 |
135 |
188 |
215 |
9.7 |
3 |
● |
| 6" |
219 |
76 |
162 |
213 |
240 |
12.7 |
3 |
● |
| 8" |
276 |
76 |
213 |
270 |
300 |
12.7 |
3 |
● |
| 10" |
337 |
102 |
267 |
331 |
360 |
15.7 |
3 |
● |
| 12" |
406 |
102 |
318 |
400 |
430 |
19.1 |
3 |
● |
|
