| NO |
Volume(m3) |

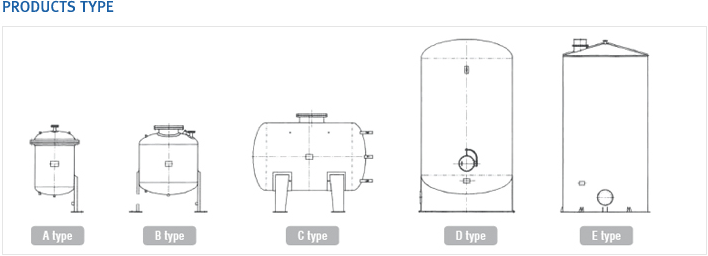

Type |
Dimension |
Thickness |
Remark |
| 1 |
0.1 |
A |
ID
500 X 450 FL |
4~8mm |
VERTICAL
Pressure Tank
with
Girth Flange |
| 2 |
0.2 |
A |
ID
600 X 640 FL |
| 3 |
0.3 |
A |
ID
700 X 700 FL |
| 4 |
0.4 |
A |
ID
750 X 820 FL |
| 5 |
0.5 |
A |
ID
800 X 900 FL |
| 6 |
0.6 |
A |
ID
850 X 960 FL |
VERTICAL
Pressure Tank
with
Girth Flange & ManHole |
| 7 |
0.7 |
A |
ID
900 X 1000 TL |
| 8 |
0.8 |
A |
ID
950 X 1010 TL |
| 9 |
0.9 |
A |
ID
950 X 1150 TL |
| 10 |
1.0 |
A |
ID
1050 X 1050 TL |
| 11 |
1.2 |
B/C |
ID
1050 X 1270 TL |
6~12mm |
Vertical
& Horizontal Pressure &
Storage Tank with Manhole
(500A or 20") |
| 12 |
1.5 |
B/C |
ID
1170 X 1270 TL |
| 13 |
2.0 |
B/C |
ID
1220 X 1580 TL |
| 14 |
2.5 |
B/C |
ID
1350 X 1580 TL |
| 15 |
3.0 |
B/C |
ID
1480 X 1580 TL |
| 16 |
4.0 |
B/C |
ID
1600 X 1800 TL |
| 17 |
5.0 |
B/C |
ID
1750 X 1860 TL |
| 18 |
6.0 |
B/C |
ID
1850 X 2000 TL |
| 19 |
7.0 |
B/C |
ID
1850 X 2380 TL |
| 20 |
8.0 |
B/C |
ID
1940 X 2470 TL |
| 21 |
9.0 |
B/C |
ID
2050 X 2480 TL |
| 22 |
10 |
B/C |
ID
2050 X 2780 TL |
| 23 |
12 |
B/C |
ID
2230 X 2800 TL |
| 24 |
15 |
B/C |
ID
2480 X 2800 TL |
| 25 |
20 |
B/C |
ID
2720 X 3100 TL |
| 26 |
25 |
B/C |
ID
3030 X 3090 TL |
| 27-1 |
30 |
D |
ID
2860 X 4310 TL |
9~15mm |
Skirt
& Con-roof Storage Tank
with
Manhole (500A or 20") |
| 27-2 |
30 |
E |
ID
2900 X 4540 TSL |
| 28-1 |
40 |
D |
ID
3200 X 4570 TL |
| 28-2 |
40 |
E |
ID
3350 X 4570 TSL |
| 29-1 |
50 |
D |
ID
3400 X 5080 TL |
| 29-2 |
50 |
E |
ID
3400 X 5510 TSL |
| 30-1 |
60 |
D |
ID
3500 X 5800 TL |
| 30-2 |
60 |
E |
ID
3630 X 5800 TSL |
| 31-1 |
70 |
D |
ID
3670 X 6160 TL |
| 31-2 |
70 |
E |
ID
3820 X 6100 TSL |
| 32-1 |
80 |
D |
ID
3800 X 6580 TL |
| 32-2 |
80 |
E |
ID
3790 X 7100 TSL |
| 33-1 |
90 |
D |
ID
3750 X 7680 TL |
| 33-2 |
90 |
E |
ID
3800 X 8000 TSL |
| 34-1 |
100 |
D |
ID
3900 X 8000 TL |
| 34-2 |
100 |
E |
ID
3900 X 8400 TSL |
