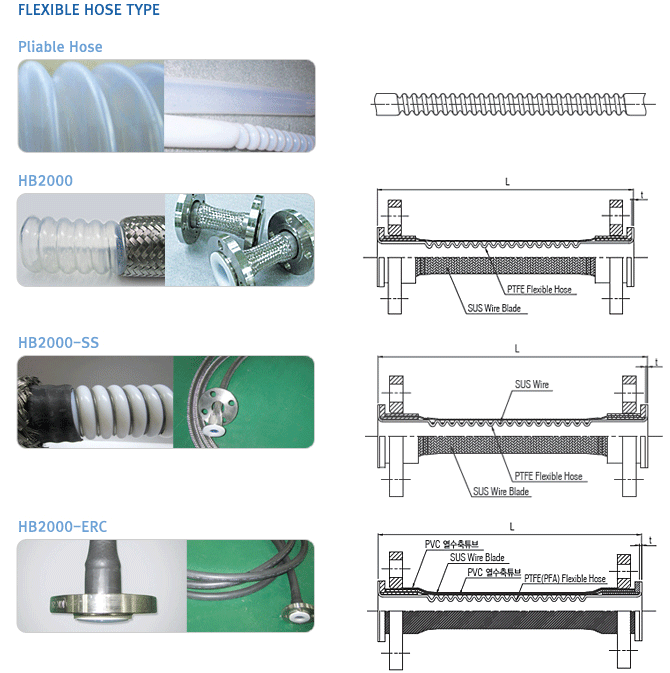

MODEL
/TEMP' |
Pliable
hose |
HB2000 |
HB2000-SS |
HB2000-ERC |
| 25℃; |
50℃ |
100℃ |
25℃ |
50℃ |
100℃ |
25℃ |
50℃ |
100℃ |
2℃ |
50℃ |
100℃ |
| 3/4"(20A) |
7 |
6 |
4 |
7 |
6 |
4 |
16 |
16 |
15 |
8 |
8 |
5 |
| 1"
(25A) |
6 |
5 |
3 |
6 |
5 |
3 |
16 |
15 |
14 |
8 |
8 |
5 |
| 1
1/2"(40A) |
6 |
5 |
3 |
6 |
5 |
3 |
14 |
14 |
11 |
7 |
6 |
4 |
| 2"
(50A) |
5 |
4 |
2 |
5 |
4 |
2 |
13 |
12 |
10 |
7 |
6 |
4 |
| 2
1/2"(65A) |
|
|
|
5 |
4 |
2 |
10 |
10 |
9 |
- |
- |
- |
| 3"
(80A) |
|
|
|
4 |
3 |
2 |
8 |
8 |
7 |
- |
- |
- |
| 4"(100A) |
|
|
|
4 |
3 |
2 |
7 |
7 |
6 |
- |
- |
- |
| 6"(150A |
|
|
|
4 |
3 |
2 |
7 |
7 |
6 |
- |
- |
- |
|
 |
Size
ANSI/JIS |
LENGTH
(L) |
ID
(Ø) |
THICKNESS
(T) |
Minimum
radius.
(mm) |
| Maximum |
Tolerence |
PFA |
PTFE |
PFA |
PTFE |
Tolerence |
1/2"
(15A) |
10000 |
|
9.7
or
16 |
- |
1.5 |
|
|
80 |
3/4"
(20A) |
10000 |
|
16
or
22 |
25 |
1.5 |
2.5 |
|
100 |
1"
(25A) |
10000 |
|
22 |
28 |
1.5 |
2.5 |
|
120 |
1-1/2"
(40A) |
10000 |
|
48 |
37 |
1.5 |
2.5 |
|
200 |
2"
(50A) |
10000 |
±
3.0 |
48 |
50 |
1.5 |
2.5 |
±
5.0% |
300 |
2-1/2"
(65A) |
5500 |
|
|
68 |
- |
3 |
|
350 |
3"
(80A) |
5500 |
|
|
73 |
- |
3 |
|
400 |
4"
(100A) |
5500 |
|
|
93 |
- |
3 |
|
500 |
6"
(150A) |
5500 |
|
|
143 |
- |
3.5 |
|
800 |
|
| Materials
* PFA STANDARD CODE : ASTM D3307 / * PTFE STANDARD CODE
: ASTM D4894 |
